2 Gang 13A RCD Socket Outlet | 30mA Safety Trip

2 Gang 13A RCD Socket Outlet | 30mA Safety Trip

Tap to enlarge


Product Information

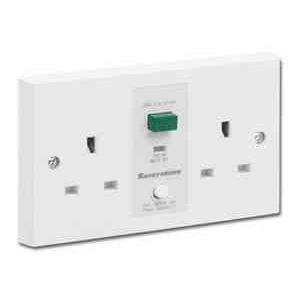

2 gang 13A socket outlet with built in safety RCD (earth leakage safety trip).

An RCCB (residual current circuit breaker), sometimes called RCD (residual-current device), is an electrical wiring device that disconnects a circuit whenever it detects that the electric current is not balanced between the energized conductor and the return neutral conductor. Such an imbalance may indicate current leakage through the body of a person who is grounded and accidentally touching the energized part of the circuit. A lethal shock can result from these conditions. RCCBs are designed to disconnect quickly enough to prevent injury caused by such shocks. They are not intended to provide protection against over current (overload) or short-circuit conditions.

Features :

  • Rated voltage: 230V AC 50Hz.
  • Maximum operating current: 13A (3A inductive).
  • Rated trip current: 30mA. Trip speed < 40mS.
  • RCD contact break: Double pole.
  • Test/Reset buttons: Responsive to both positive and negative cycles.
  • Dimensions: 145mm x 85mm x 35mm.
  • Conforms to BS7288:1990 and BS1363.
  • Mechanically latched - no need to reset after power loss.
Product CodeBJE
