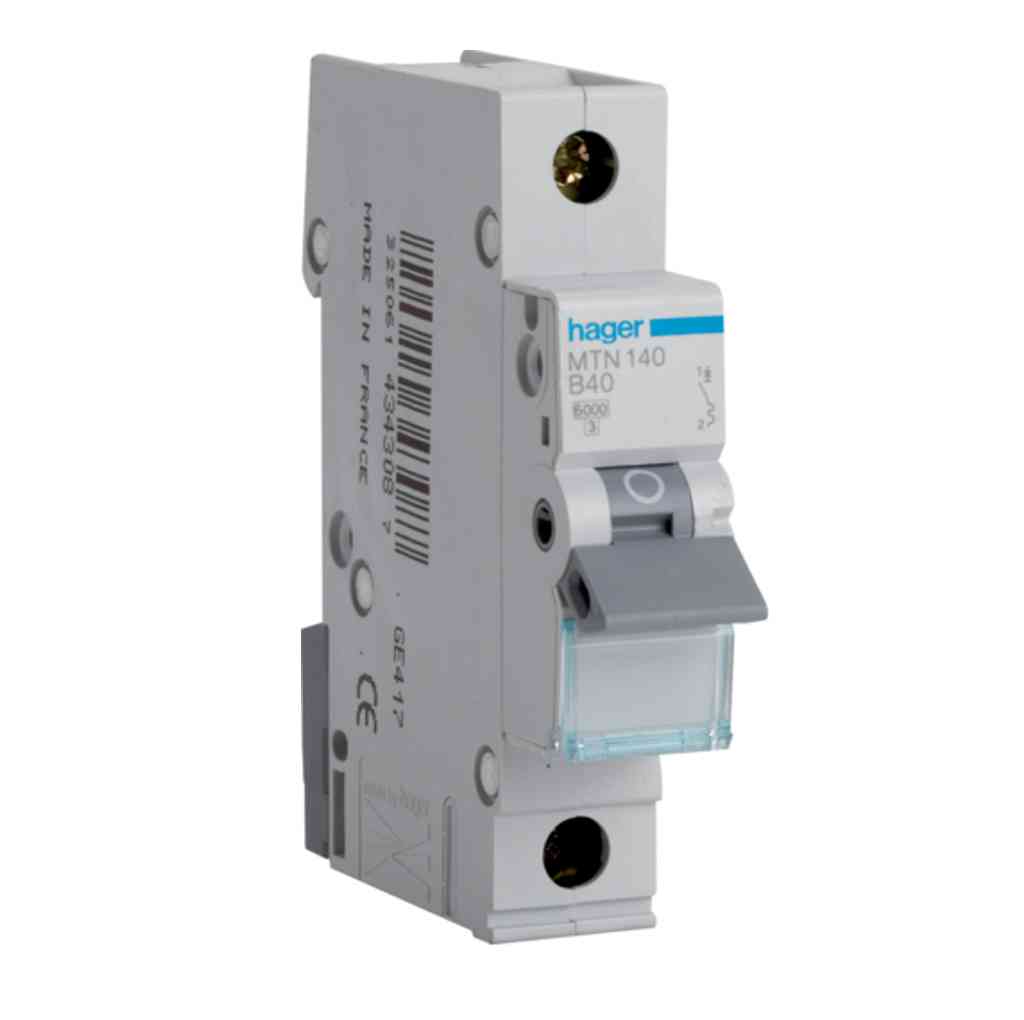

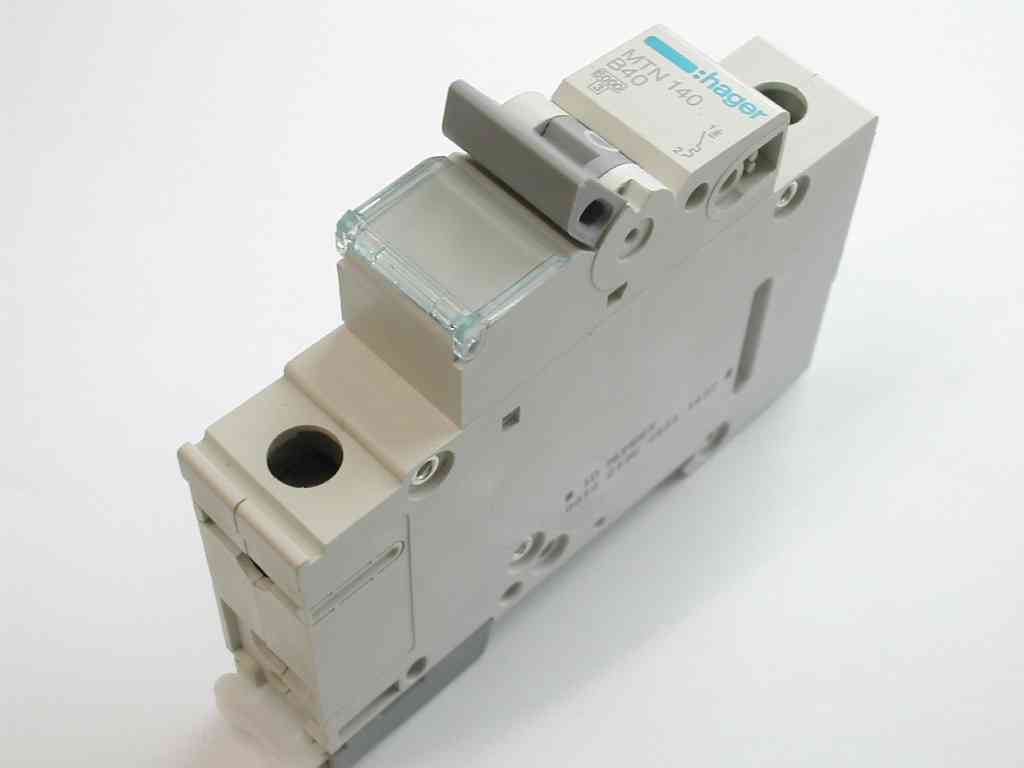

Hager 40A MCB MTN140 Type B

  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
Hager 40A MCB MTN140 Type B

Tap for gallery

£5.03


Product Information
Specification

Type B 40 Amp / 40A Hager MTN140 MCB (miniature circuit breaker).

Hager MTN MCBs detect over currents due to both overload and fault currents. The MTN range are Type B breakers, this means they will trip between 3 and 5 time full load current which is suitable for most domestic installations. The MCB will operate and interrupt the supply to prevent damage to the installation.

DIN rail mounted, the Hager MTN domestic MCBs have a short circuit breaking capacity of 6kA. The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.

The MCBs have a positive indication for on or off.

Features :

  • Single pole.
  • Connection capacity : rigid conductor 25mm² : flexible conductor 16mm² .
  • Suitable for the Hager range of domestic consumer units.
  • Breaking capacity 6kA.
  • Rated Voltage : 230 / 400 Volts.
  • Reference calibration temperature : 30°C.
Product CodeBYM
ManufacturerHager
ConditionNew
Weight0.125kg
