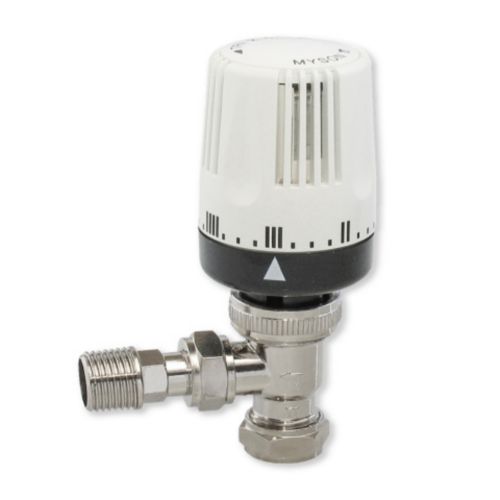

Myson TRV 2 Way Thermostatic Radiator Valve 15mm

Myson TRV 2 Way Thermostatic Radiator Valve 15mm
  • Click to enlarge
  • Click to enlarge

5.0 average, based on 1 reviews

£12.63


Myson TRV 2 Way thermostatic radiator valve.

Main features :

  • Vertical or horizontal mounting.
  • Conforms to BS EN215-1.
  • Maximum operating pressure 10 Bar.
  • Maximum water temperature 120˚C.
  • Maximum differential pressure 0.6 Bar.
  • Differential Pressure Influence: 0.5K.
  • Water temperature Influence: 0.5K.
  • Response time: 26 minutes.
  • Liquid filled sensing element.
  • Hysteresis at nominal flow rate: 0.5K.
  • Temperature setting range 8 to 28°C.
  • Frost setting 8°C.
  • Notched economy setting (at 20°C), which gives you a warning if you turn the valve to higher temperatures.
  • 1/2 inch BSP male thread (standard radiator size).
  • 15mm compression pipe connection.

It is called a two way valve, as it can be fitted on the flow or return pipe (older valves could only be fitted on the flow).

We also have the head part on its own as a spare.

Myson TRV temperature symbols
SymbolTemperature
◯ OffOff
❆ Snowflake
Frost Protection
8°C
12°C
❙❙16°C
❙❙❙20°C
❙❙❙❙24°C
⬤ Max28°C

** BSP thread sizes are measured a special way - have a look at our information page for more details **

Product CodeMZI
ManufacturerMyson
ConditionNew
Weight0.38kg
BrandMyson


Customer Reviews

Average Rating: 5

TRV

12345
Well known make. Nicely made and finished. Very easy to fit - although it came complete with all the plumbing type parts, I simply needed to install the top plastic adjuster part as everything else was identical to that already fitted and in good condition on my radiator. This made the job really simple, only took a couple of minutes, and works perfectly. Only slight criticism is that the product itself is a little on the large side so bear this in mind if it's going to be in a very exposed location. (20 Jul 2013, 14:32)
