Pressure Relief Valves

Pressure Relief Valves

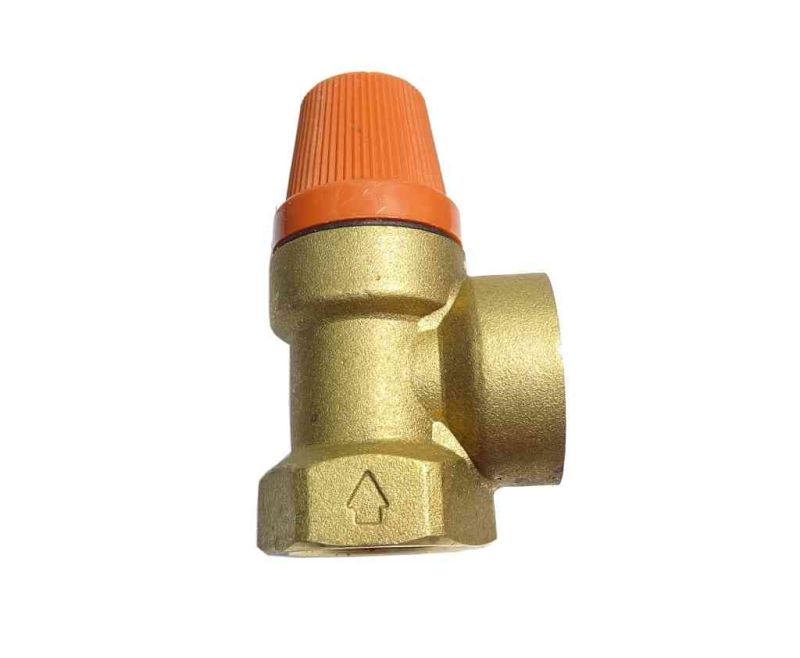

Pressure relief valves are used to protect plumbing and heating systems from damage caused by harmful high pressure situtaions.

Pressure is measured in "Bar". One Bar is about equal to the atmospheric pressure on Earth at sea level. In "old money" it's equal to 14.5 pounds per square inch (PSI).

3 Bar = 43.5 PSI (popular size for a relief valve in a central heating system).

6 Bar = 87 PSI (common size for unvented water heaters).

7 Bar = 101 PSI

The outlet from a pressure relief safety valve should be positioned in a way so as to not scald people or animals with escaping hot water or steam.
