Gate Valves

Gate Valves

Selection of brass gate valves, sizes up to 54mm Copper x Copper or 1 inch BSP Female x Female.

Gate valves are specifically engineered for applications involving water in low-pressure systems with pressures measuring only a few metres head (less than 1 bar). They are used to temporarily turn off water supplies for maintenance purposes.

In the open position, the gate ascends fully into the valve, creating an opening approximately equivalent to the size of the pipe installed in the valve. This design ensures unhindered water flow, as the valve imposes minimal restriction. Conversely, when the valve is closed, the gate descends, effectively sealing off the passage for water.

  • 15mm Gate Valve

    15mm Gate Valve

    Brass 15mm gate valve with compression connections to suit copper or plastic pipe.

    £5.80

    £5.80

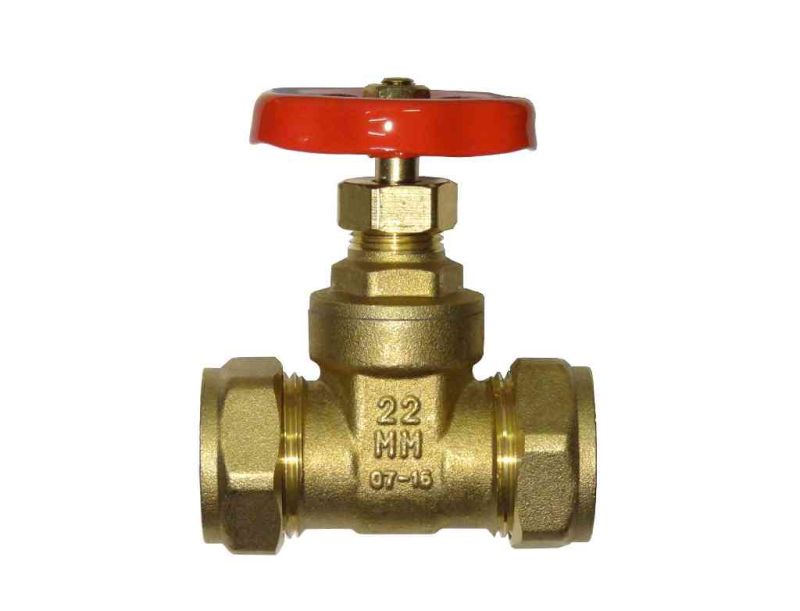

  • 22mm Gate Valve

    22mm Gate Valve

    Brass 22mm gate valve with compression connections to suit copper or plastic pipe.

    £8.39

    £8.39

  • 28mm Gate Valve

    28mm Gate Valve

    Brass 28mm gate valve with compression connections to suit copper or plastic pipe.

    £10.60

    £10.60

  • 35mm Gate Valve

    35mm Gate Valve

    Brass 35mm gate valve with compression connections to suit copper or plastic pipe.

    £33.34

    £33.34

  • 42mm Gate Valve

    42mm Gate Valve

    Brass 42mm gate valve with compression connections to suit copper or plastic pipe.

    £40.72

    £40.72

  • 54mm Gate Valve

    54mm Gate Valve

    Brass 54mm gate valve with compression connections to suit copper or plastic pipe.

    £56.56

    £56.56

  • 3/8" BSP Gate Valve

    3/8" BSP Gate Valve

    Brass gate valve with 3/8 inch BSP female threaded connections.

    £5.18

  • 1/2" BSP Gate Valve

    1/2" BSP Gate Valve

    Brass gate valve with 1/2 inch BSP female threaded connections.

    Gate valves are designed for use with water in low pressure systems where the pressures involved are only a few metres head (less than 1 bar).

    £6.75

    £6.75

  • 3/4" BSP Gate Valve

    3/4" BSP Gate Valve

    Brass gate valve with 3/4 inch BSP female threaded connections.

    Gate valves are designed for use with water in low pressure systems where the pressures involved are only a few metres head (less than 1 bar).

    £7.93

    £7.93

  • 1" BSP Gate Valve

    1" BSP Gate Valve

    Brass gate valve with 1 inch BSP female (FxF) threaded connections.

    Gate valves are designed for use with water in low pressure systems where the pressures involved are only a few metres head (less than 1 bar).

    £11.47

    £11.47

  • 22mm Pump Valve (Gate Type)

    22mm Pump Valve (Gate Type)

    22mm gate type central heating pump valve complete with nut and washer.

    Nut has 1-1/2 inch BSP thread (normal heating pump size).

    £7.00

    £7.00

  • 28mm Pump Valve (Gate Type)

    28mm Pump Valve (Gate Type)

    28mm gate type central heating pump valve, with nut and washer.

    Nut has 1-1/2 inch BSP thread (normal heating pump size).

    £9.62

    £9.62
